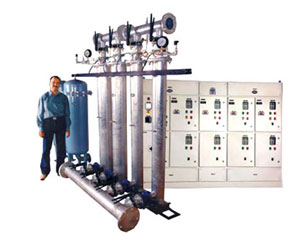

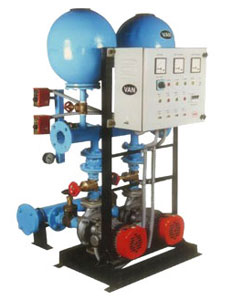

Hydro-Boost-M are packaged pumping systems incorporating Multiple Monoblock pumps, diaphragm tanks, control panel duly piped and wired and are dispatched in ready-for-installation condition. The Hydro Boost units are fully tested. The pumps motors, electrical are chosen from a wide range of reliable Manufacturers like Kirloskar, L & T, Siemens etc.

OPERATION :
The pumps start/stop automatically, sensing drop/rise in pressure, when outlets are opened/closed. The low demands are met by the diaphragm tanks. The running of appropriate pumps in their high efficiency zone, ensures, saving of energy from zero to peak load.

APPLICATION :
Multistoried Buildings, Bungalows, Apartments, Industries, Automatic Water Supply & Pressure Boosting. First Air Fire Fighting, for Cleaning & Washing, and Innumerable others.

SALIENT FEATURES

• Fully assembled, wired and preset HYDRO-BOOST ready for use.
• Easy Installation. One Electric and Two Hydraulic connections. Rigid foundation not required.
• Diaphragm Vessel with easily replaceable food quality diaphragm. Tank location not critical. If ensures noiseless, pulse free pumping.
• Easy operation and maintenance features at lower cost.
• Compact, energy efficient, economical too.
• Eliminates overhead tank, Can get any desired pressure in the system or change the pressure easily by simple modifications.
• Useful for new installation, can be retrofitted on existing and OLD installations.
• Custom design and operations available to meet any demanding situation. Different types of pump options possible.
• Single source responsibility for preselection assistance, design, installation commissioning and 12 months guarantee.

APPLICATION :

• Eliminates overhead tank.
• Multistoried Building, IT, Parks, Shopping Malls, Apartments, Bungalows, Resorts, Hotels etc.
• Industries – water supply, HVAC, Cooling, heating etc.
• First air fire fighting.

ECONOMICAL :

• Energy efficient pumping systems – leading to lowest running cost.
• Easy interchangeability / serviceability
• Quick availability / Early deliveries.
• Operator and pump room not required.
• Single source responsibility and prompt service.

SPACE SAVING AND COMPACT :

• System can be without pump house.
• Floor space required is least as compared to any other systems.
• Diaphragm vessel and control panel need not be in the pump room.

RELIABLE :

• Systems are engineered for long life.
• No hydraulic or electrical surges.
• Ventilation not required.

ENVIRONMENT FRIENDLY

• No gland leakage.
• Noiseless, vibration free.
• No heat emission.

CONSTRUCTION :

• Vertical multistage pumps with TEWC Motor.
• Pump can suck water upto the lowest from the tank.
• The system are with VFD.
• Upto 5000 lpm & 250 meters head for handling water.
• Fully automatic operation.
